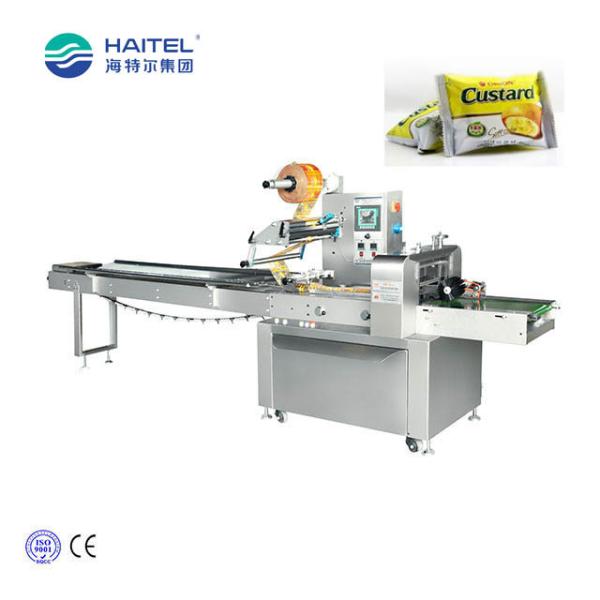

HTL-T280 Stainless steel Pillow Type Multifunctional horizontal flow wrap Packing Machine

Characteristics :
1.The machine uses servomotor, flexible bag length cutting operator need not to adjust the unloading working saving time and films.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more
accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.

Application:
Suitable for packing regular objects such as biscuit, egg pie ,bread, chocolate, candy, instant noodle, moon cakes, hardware,daily consuming ware, industrial parts, paper box or trays.

Technical Data:

Model	HTL-280E
Film width	Max.180mm
Bag length	50-115mm
Bag width	30-80mm
Product height	Max.35mm
Packing speed	60-350 bag/min
Voltage	220V/ 50HZ
Power功率	2.5kw
Dimension外形尺寸	(L)3800×(W)1150×(H)1650mm
Total weight总重量	650Kg
