Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min

    Buy cheap Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min from wholesalers

    Buy cheap Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min from wholesalers
    • Buy cheap Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min from wholesalers
    • Buy cheap Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min from wholesalers

    Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min

    Ask Lasest Price
    Brand Name : Haitel
    Model Number : HTL-V420
    Certification : CE/ISO9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3 sets per month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min

    380v Automatic vertical weighing candy packing machine 60bag/min


    Application:

    The bagging machine is widely used for packing products in the shape of granules, stripes, slices, such as candy, potato chips, jelly, and peanuts.

    Characteristics:

    1. Touch screen with stable transmitting PLC control to perform bag making, weighing, filling, sealing, code printing, and cutting automatically.

    2. Independent compressed air control and electrical wire system control separately, low noise in running, stable performance.

    3. Vacuum belt pulling system to feed film and make bags with no faults.

    4. Double servo control system, precise positioning.

    5. Easy to place the rewind rolls onto the machine.

    6. Set up and adjust parameters on the touch screen to change bag size.

    7. Sealed structure design to prevent dust contamination.

    8. Multi computerized weighing heads to deliver correct weight.

    Specifications:

    ModeHTL-V420HTL-V520HTL-V680
    Bag length(mm)80-300(L)80-400(L)100-480(L)
    Bag width(mm)50-200(W)80-250(W)180-320(W)
    Max width of roll film(mm)420520680
    Packing speed(bags/min)5-605-505-50
    Volume range150-1200ml3000Max6000Max
    Air consumption(Mpa)0.650.650.65
    Gas consumption(m3/min)0.30.40.4
    Power voltage220V220V220V
    Power(KW)2.245
    Dimension(L*W*H)mm1320*950*13601150*1795*16501780*1350*1950
    Weight(kg)540600900

    WHY CHOOSE US?


    • Top Food machine manufacturer in China
    • 20000 square meters production plants
    • Over 22 years of experience
    • Made-in-China’s Gold member since 2009
    • CE, ISO9001 certified
    • Engineers able to offer overseas installation and testing, and training
    • Prompt delivery and flexible payment terms
    • Small order is welcomed
    • professional team with strong technical and R&D knowledge to develop advanced food equipment
    • save labor costs and improve the capacity.


    Packaging and Delivery

    1. Prompt delivery on the very day.
    2. Sophisticated and professional logistic agent.
    3. Well-trained and disciplined packing team.
    4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

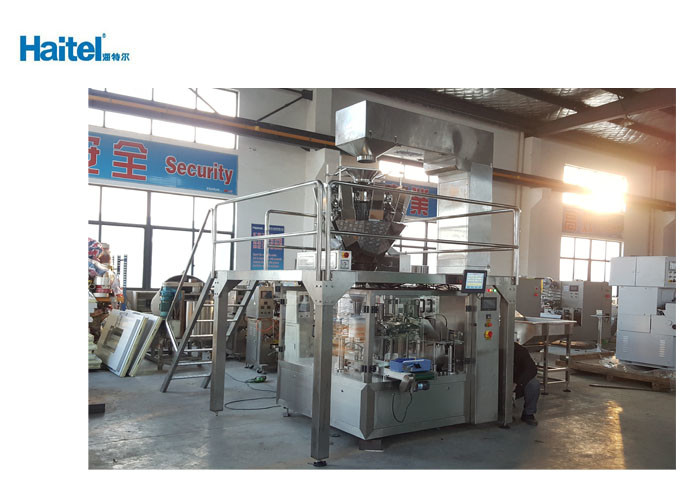

    Machine pictures
    Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min
    Finished product pictures
    Quality Automatic Weighing Vertical Packaging Machine Candy Packing Machine 60bag/Min for sale
